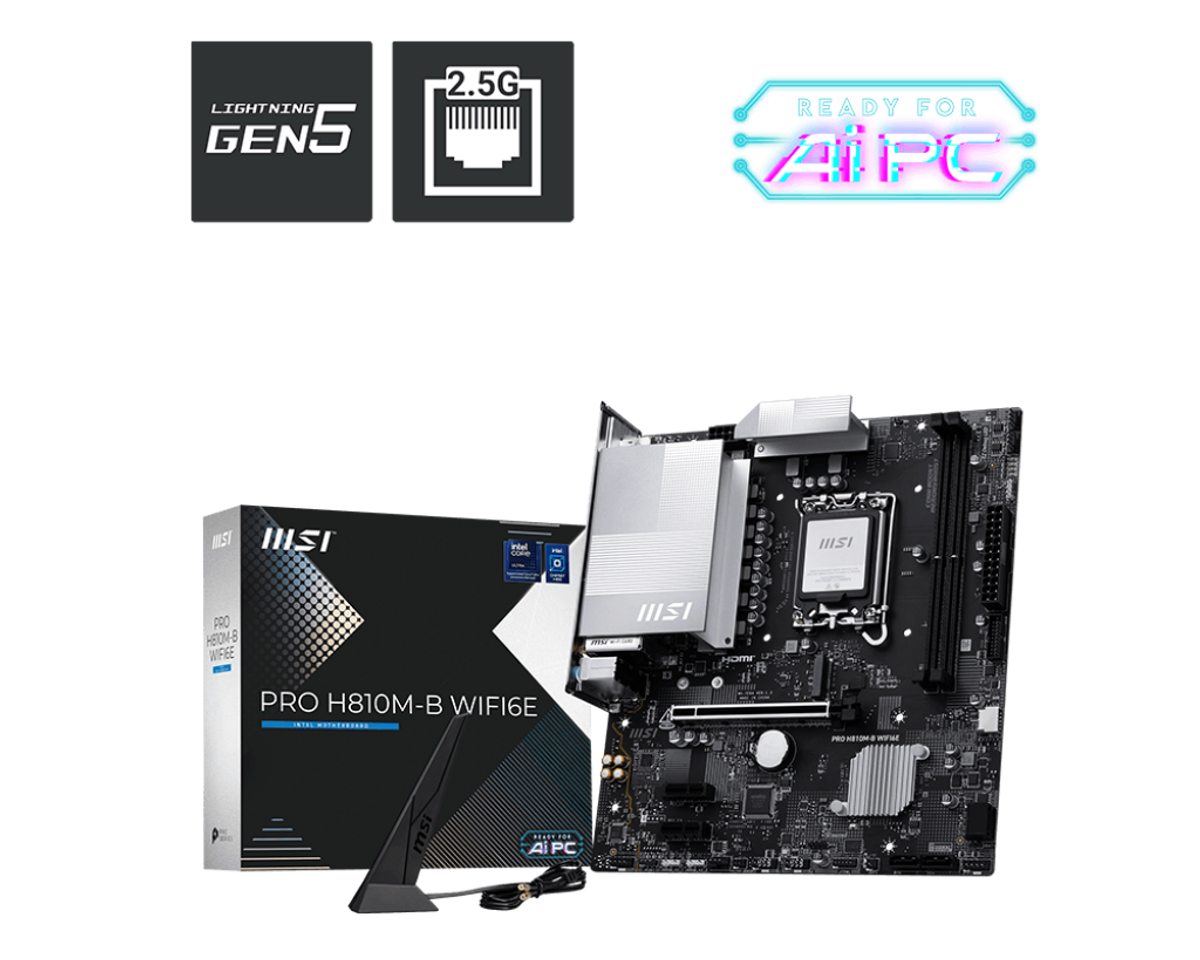

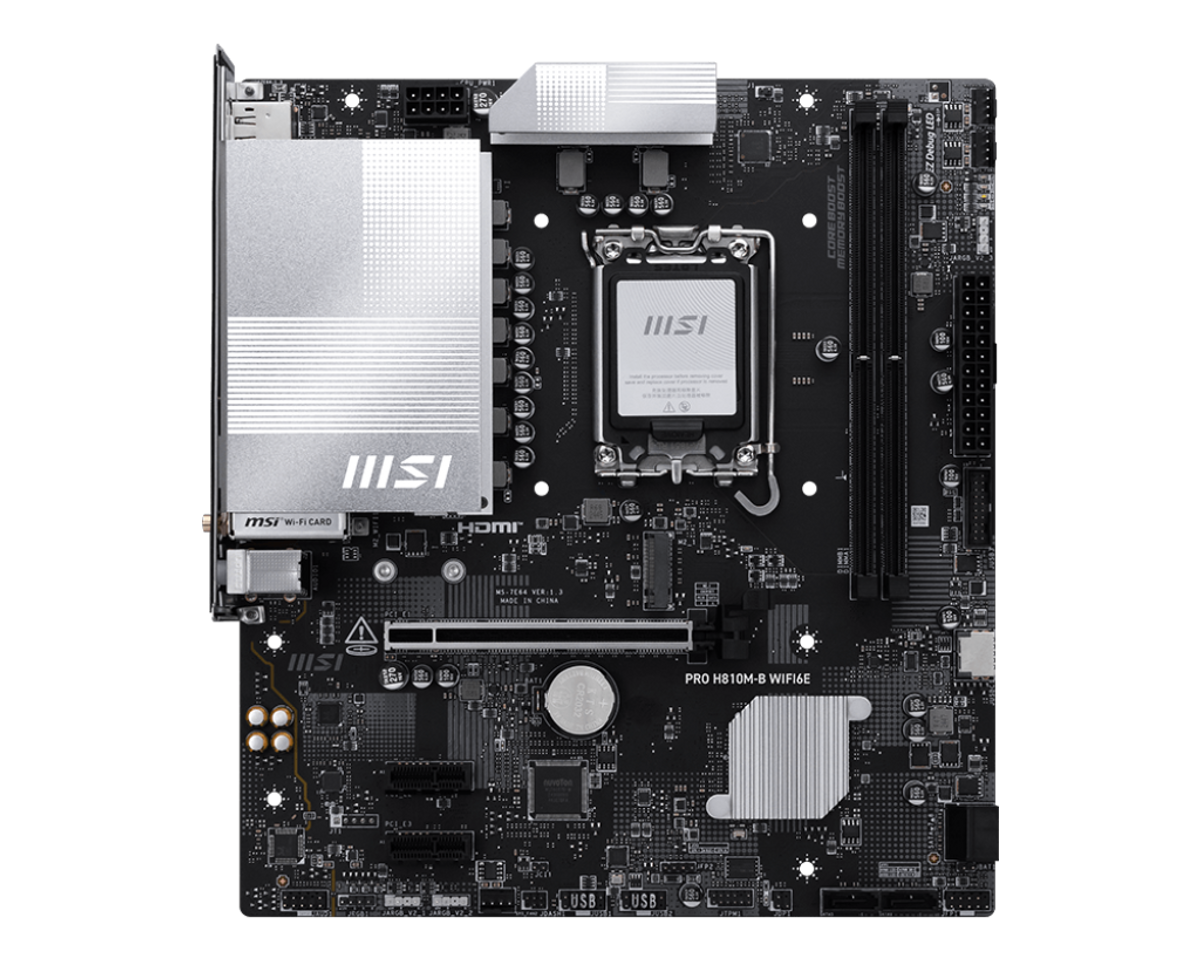

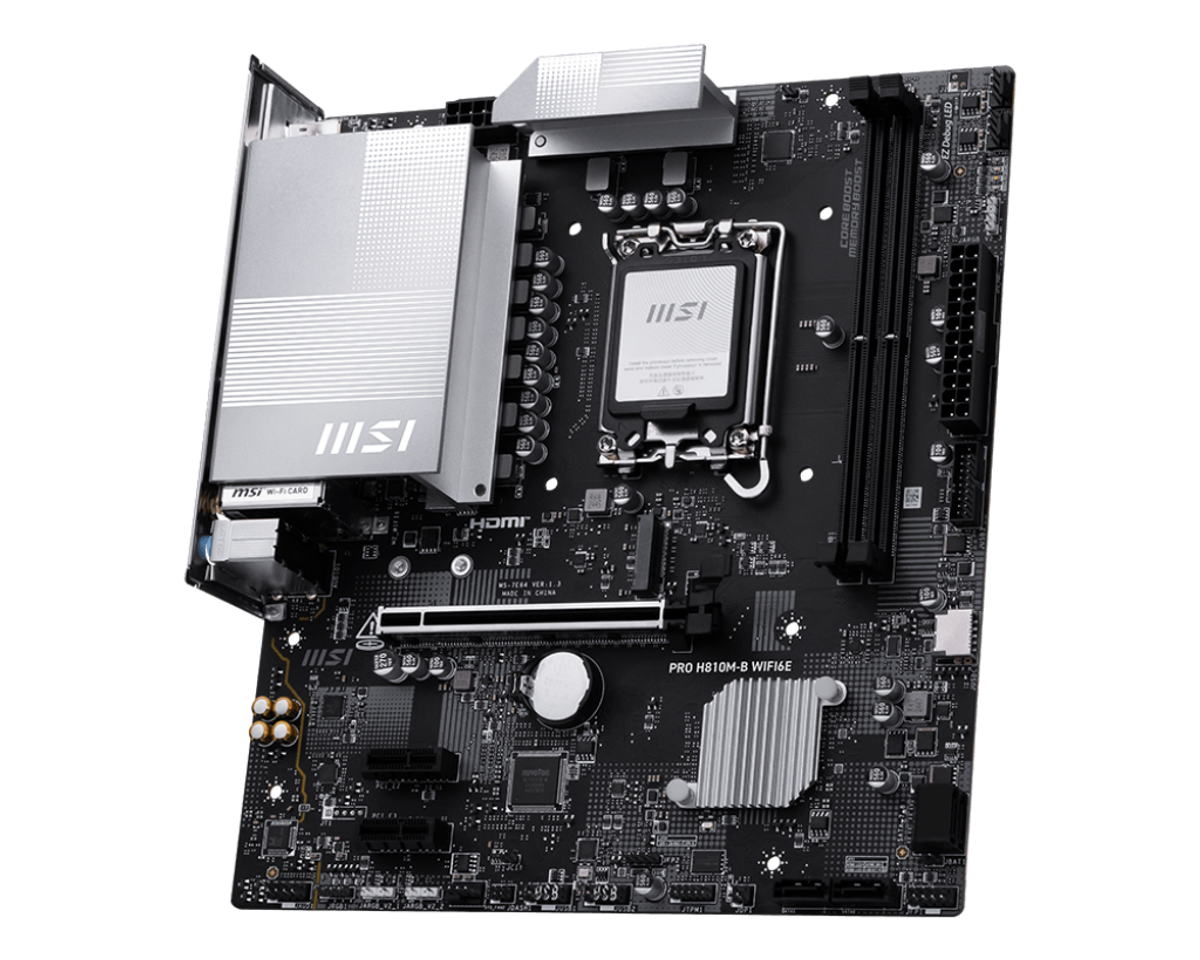

לוח אם PRO H810M-B WIFI6E

Name: לוח אם PRO H810M-B WIFI6E
SKU: AM_4711377337984

במלאימק״ט AM_4711377337984

Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX) Core Boost

בקצרה

תושבת	LGA 1851
מערכת הפעלה	Support for Windows® 11 64-bit
תמיכה במעבדים Intel® Core™ Ultra סדרה 2	Supports Intel® Core™ Ultra Processors (Series 2)
תצורת לוח אם mATX	mATX (220mm × 243.84mm)
ערכת שבבים	Intel H810
זיכרון	2× DDR5 UDIMM, Maximum 128GB
תמיכה בזיכרון	DDR5 6400–4800 (JEDEC), Dual-Controller Dual-Channel, Non-ECC, Un-buffered, Intel® XMP 3.0, CUDIMM
Max Overclocking Frequency	1DPC 1R / 1DPC 2R up to 6400 MT/s
PCI-E x16	1× PCI-E x16 slot, PCIe 5.0 (from CPU)
PCI-E x1	2× PCI-E x1 slot, PCIe 4.0 (from Chipset)
M.2 Slot	1× M.2 slot, PCIe 4.0 x4 (from Chipset), supports 2280/2260 devices
SATA III	4× SATA 6G
