CUDY GS1016

מידע נוסף

16-Port Gigabit Unmanaged Switch

GS1016 3.0

A 16-GbE switch with VLAN/Extend functions and a fanless cooling system.

•  16× GbE
•  Default/VLAN/Extend Modes
•  Extend for 250 Meters Transmission
•  VLAN for Clients Isolation
•  Desktop, Rack-Mount
•  200×118×44 mm (7.87×4.65×1.73'')
•  617 g (21.76 oz.)

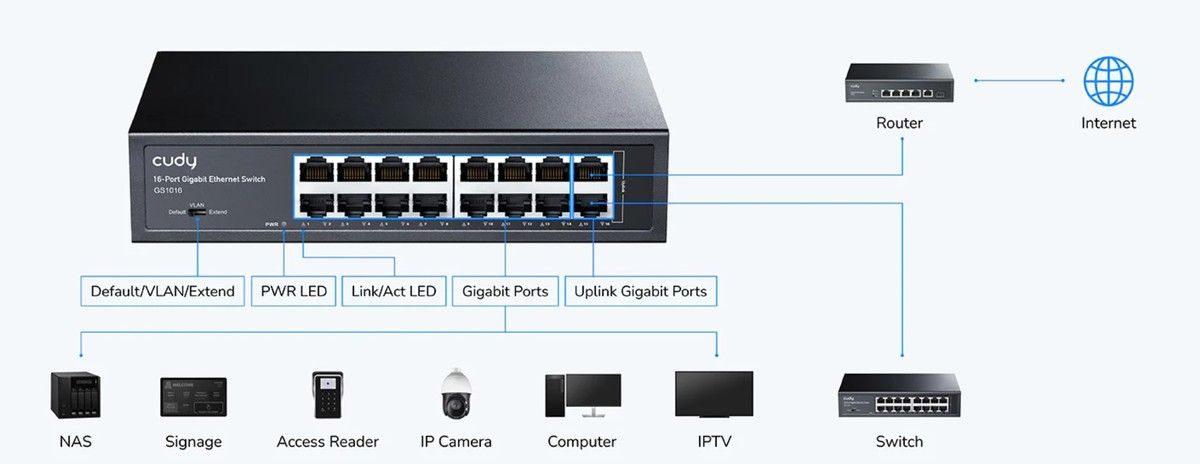

Default/VLAN/Extend Multi-Mode

VLAN Mode

Protect clients from attack from client-side hacking. With VLAN mode, downlink ports 1-14 can only communicate with uplink ports.

Extend Mode

Prolong the transmission distance of ports 1-14 to a maximum of 250 meters and simplify installation. (These ports' speed will be capped at 10 Mbps)



DSCP/802.1p QoS

Itentify the packets with DSCP headers and forward those with higher priority first.

IGMP Snooping

Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.

Loop Prevention

Blocks the ports automatically when it detects a loop in the network, preventing downtime caused by misoperation.

Fanless Cooling

Low heat generation and fanless design cater to noise-sensitive enironments.

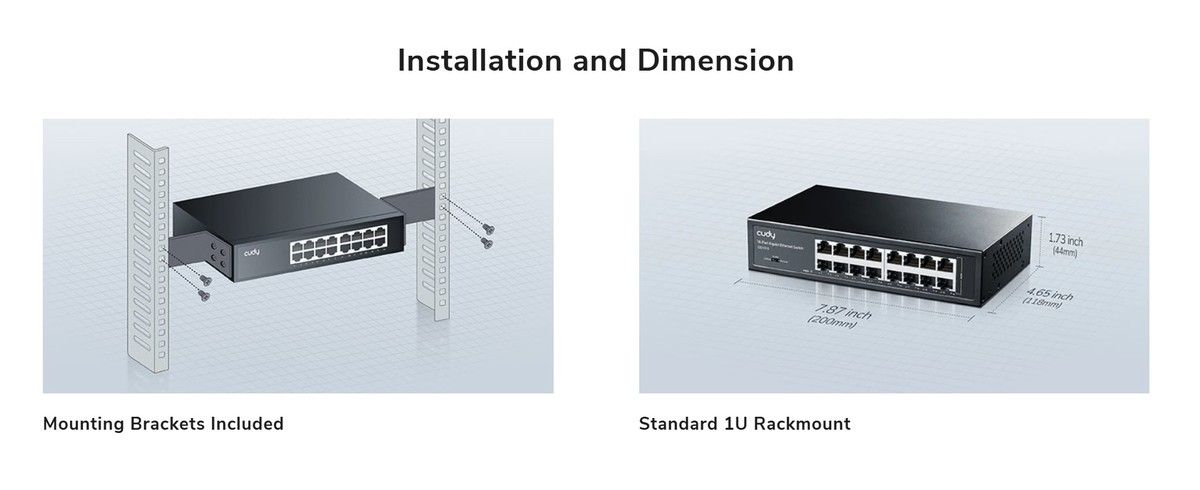

Installation and Dimension

Mounting Brackets Included



•
