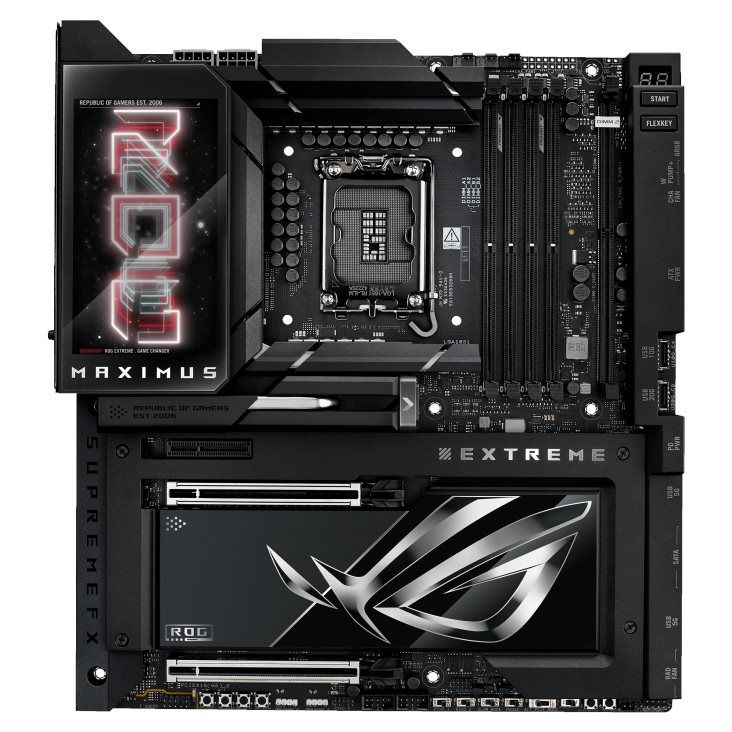

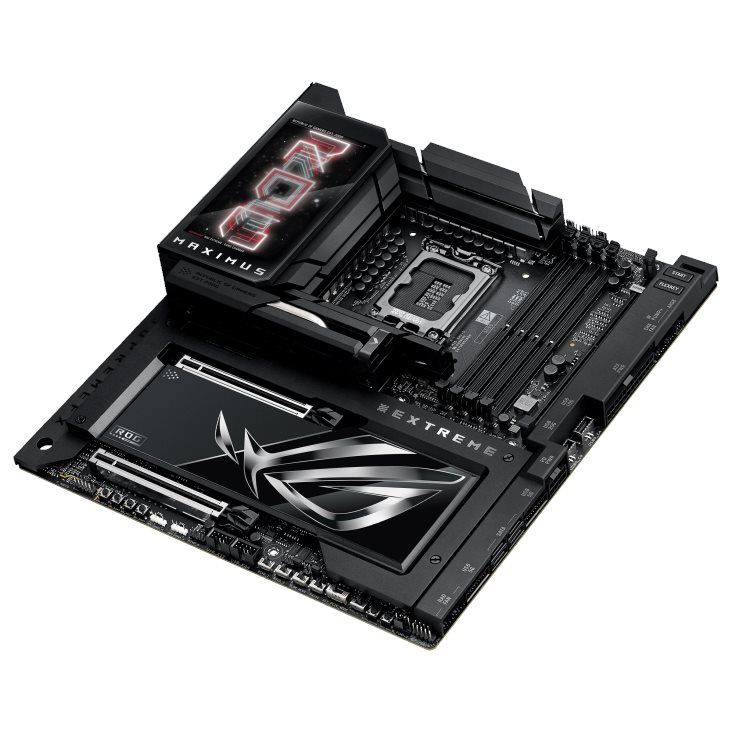

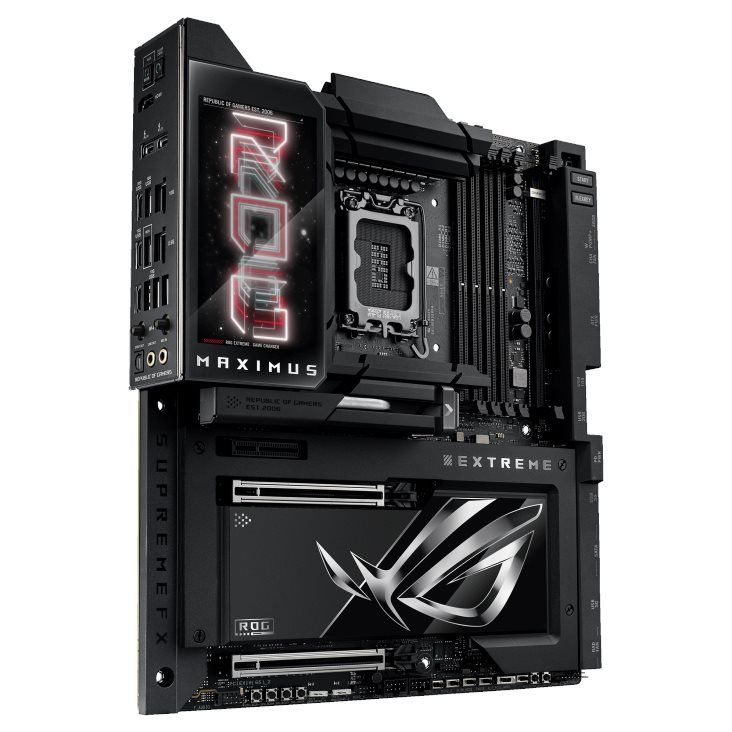

ROG MAXIMUS Z890 EXTREME WIFI 7

במלאימק״ט ES_90MB1IA0-M0EAY0

מפרט טכני

מותג	Asus
Chipset	Intel® Z890 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5
יציאה גרפית	1 x HDMITM port2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*
Expansion Slots	Intel® Core™ Ultra Processors(Series 2)2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)Intel® Z890 Chipset*1 x PCIe 4.0x4 slot
Storage Interface	Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features - SupremeFX Shielding Technology- ESS® ES9219 QUAD DAC- LED-illuminated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors
USB Ports	Rear USB (Total 10 ports)2 x Thunderbolt™ 5 ports (2 x USB Type-C®)1 x USB 20Gbps port (1 x USB Type-C®)7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)Front USB (Total 10 ports)1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*1 x USB 10Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Operating System	Windows 11 (22H2 & later)
Form Factor	E-ATX Form Factor12 inch x 10.9 inch (30.5 cm x 27.7 cm)
